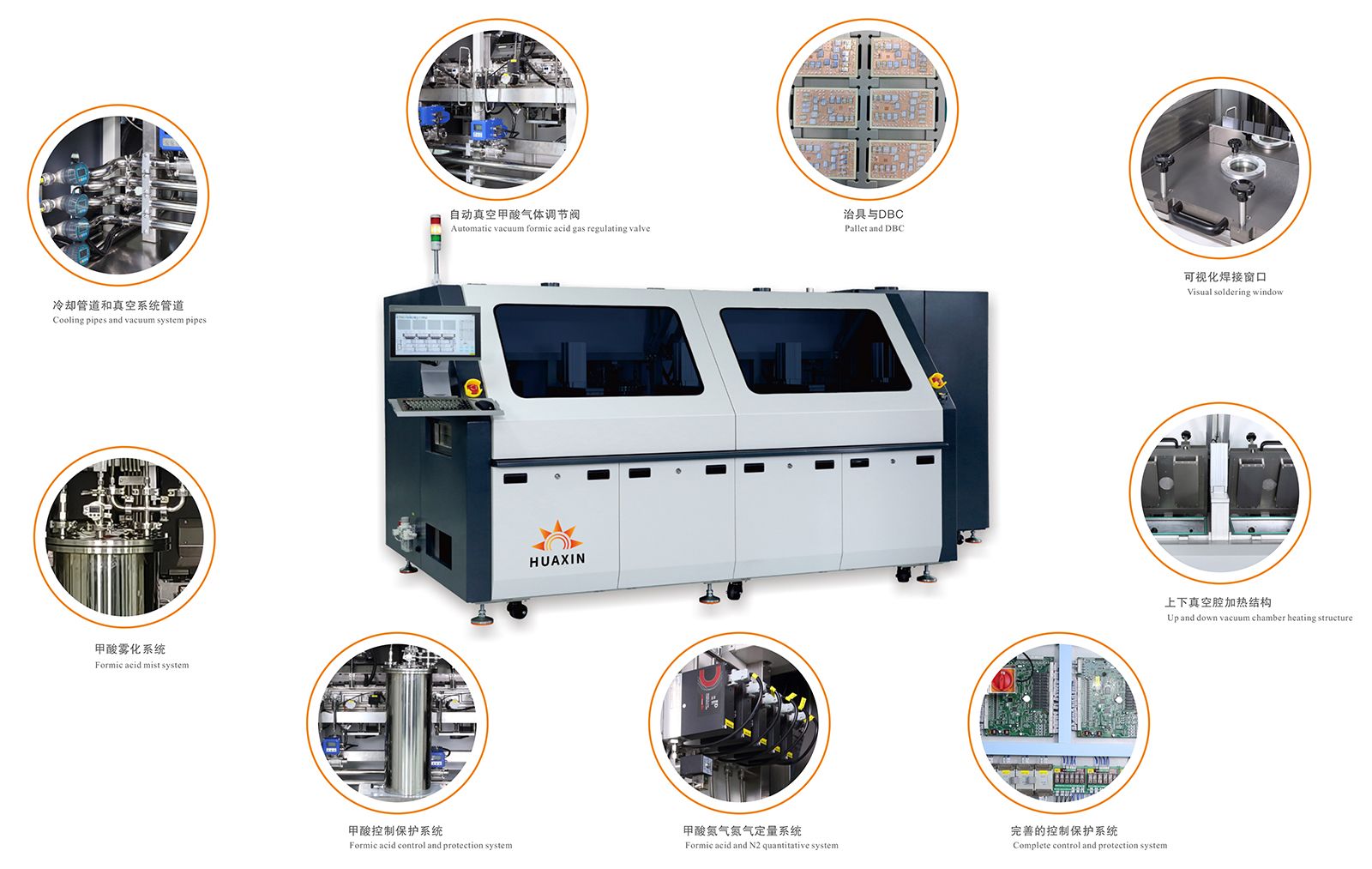

HPK Series Formic Acid Vacuum Reflow Oven

This machine perfectly matches PINK vacuum reflow soldering, has independent intellectual property rights, and is designed for high-power modules such as semiconductor power devices and IGBTs.

This equipment adopts an industrial embedded control system, which uses dual CPU operations, not only stable and reliable, but also has more accurate temperature control.

This machine is designed for ultra-high temperature use environment, which can meet the soldering requirements of ultra-high temperature products.

Recipe and MES are available with this machine.

The patented sealing ring water-cooling structure, is not only durable and with lower usage costs, but also reduces expensive product damage caused by poor sealing.

The minimum void rate can reach Single＜1%, Total＜2%.

基本参数 Specifications
设备型号 Models	HPK-300	HPK-400
加热方式 Heating metdod	金属加热平台，产品接触式传导热量 Metal heating platform, product contacting heat conduction
加热温区 Heating zone qty.	2 PCS	3 PCS
冷却区 Cooling zone qty.	1 PCS
[敏感词]温度 Max. temp.	≥450℃
加热平台均匀度 Heating platform uniformity	≤±5℃
真空区真空度 Vacuum degree	≤1mbar
真空区 Vacuum zone qty.	3 PCS	4 PCS
冷却方式 Cooling metdod	配置水冷系统，产品接触式降温 Cooling system, Product contact cooling
进料方式 Pallet entering metdod	伺服电机控制升降；电机传动进料 Servo motor control lifting, Motor drive entering
进料接驳 Entrance height	900±20mm接驳自动运行进料生产 900±20mm Conveyor auto running and pallet
产品[敏感词]尺寸 Max. pallet size	100mm*200mm
炉膛高度 Chamber height	50mm
产能 Capacity	7-15min/CPS治具 7-15min/pallet	5-10min/CPS治具 5-10min/pallet
加热平台材质 Heating platform material	高分子合金材料+表面特殊处理 Polymer alloy material + special surface treatment
气泡率 Voidrate	单个≤1，整体≤2 Single≤1, Total≤2
气体 Air type	氮气、甲酸气体、氢气 Nitro gen, formic acid gas, hydrogen gas
氮气消耗 N2 consumption	约50L-100L/min Approx. 50L-100L/min	约60L-120L/min Approx. 60L-120L/min
[敏感词]含氧量 Min. oxygen content	10ppm
甲酸使用量 Formic acid usage	约30-100L/min Approx. 30-100L/min	约40-120L/min Approx. 40-120L/min
功率 Power	[敏感词]功率:35KW 工作功率:10-15KW Max.:35KW Working power:10-15KW	[敏感词]功率:45KW 工作功率:12-18KW Max.:45KW Working power:12-18KW
控制方式 Control metdod	嵌入式工业工控系统 Embedded industrial control system
操作系统 Operation system	LINUX系统 LINUX system
电源标准 Power supply	380V三相五线制 380V 3 Phase 5 Wires
外观尺寸 Dimension	L3500 x W1800 x H1800 mm	L4000 x W1800 x H1800 mm
设备重量 Weight	3000KG	3500KG

注：此技术参数仅供参考，实际参数以厂家提供技术规格书以及实际生产工艺而定。
Remarks: above parameters are for reference only. tde actual parameter is set according to tde technical specification and production process provided by tde manufacturer.
