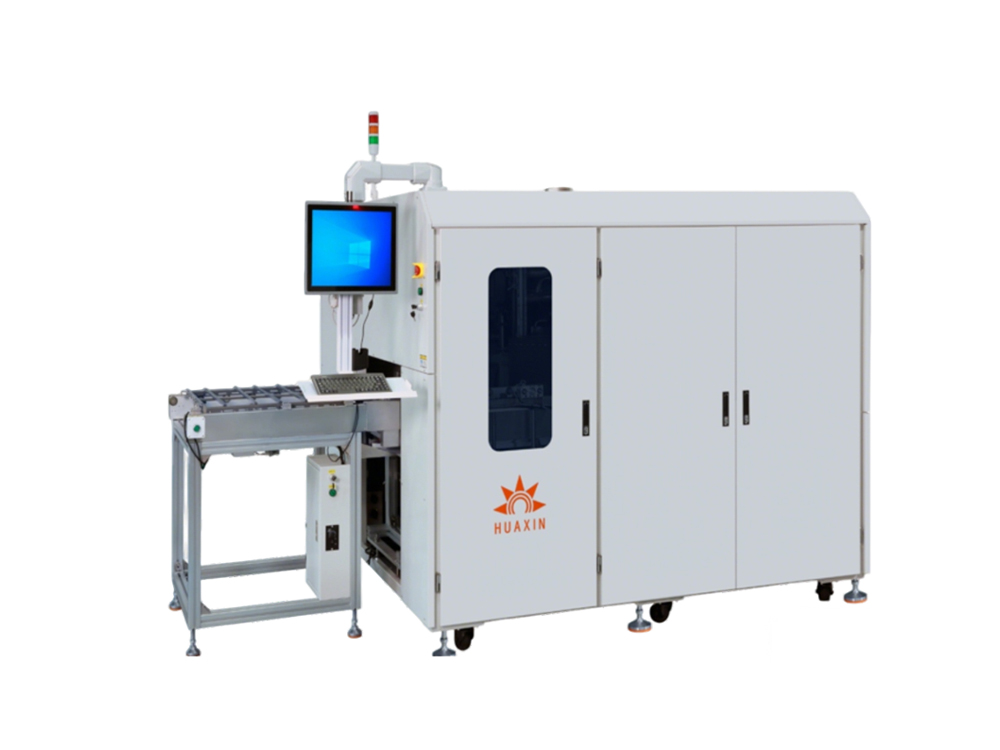

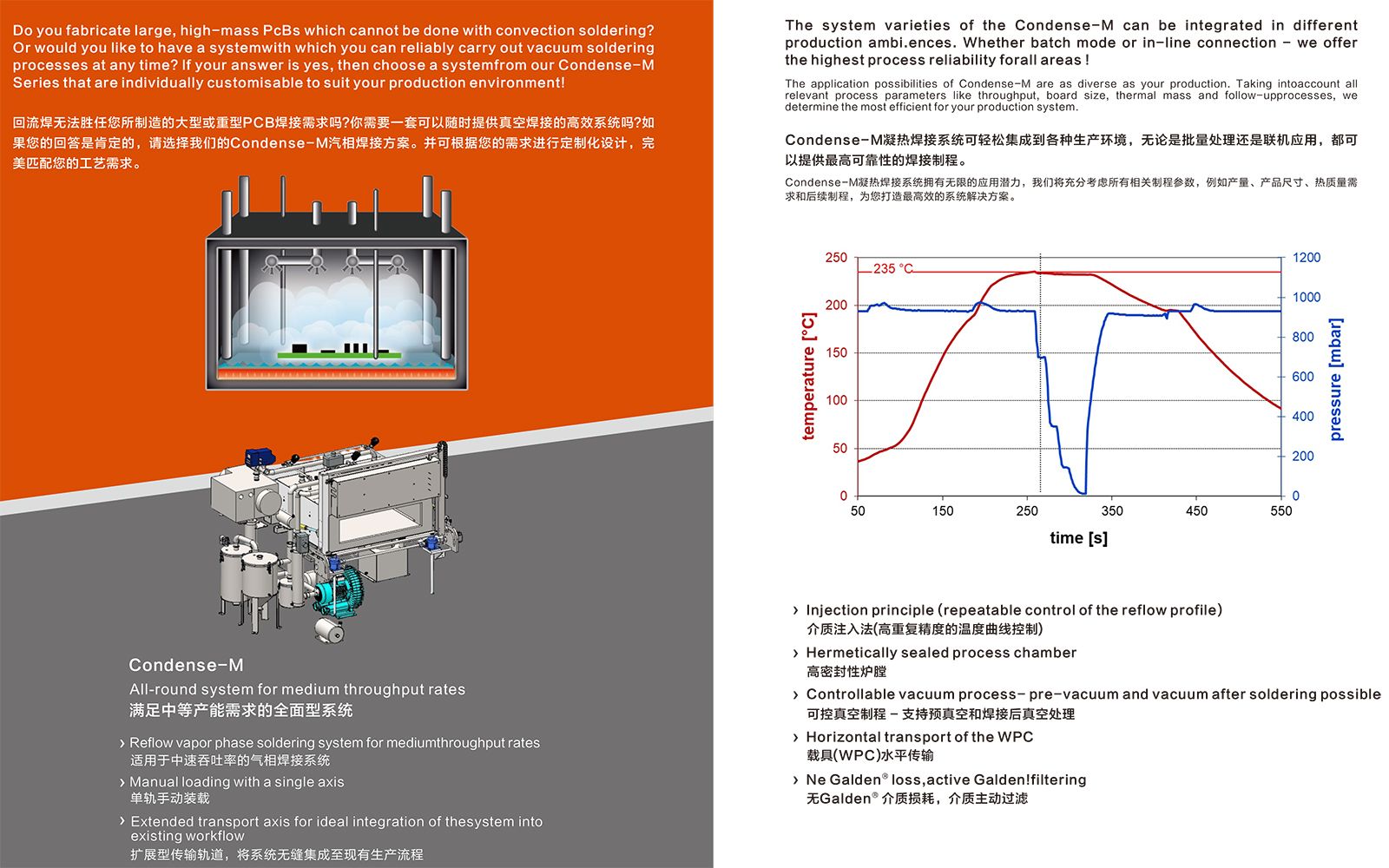

真空气相焊接炉 Condense-M

小T值（温差）。

在整个系统中实现高效、均匀的热传导。

[敏感词]焊接温度不会超过 Galden 介质沸点。

获得专利认证的介质注入技术，确保获得可靠的高重复精度焊接效果。

优化温度曲线。

梯度控制。

联系我们

基本参数-Dimensions and Weights
长度/Length	3240 mm(不含接驳2430mm)
宽度/Width	2100 mm
高度(不含信号灯)/Height without traffic light	1800 mm
高度(含信号灯)/Height with traffic light	2260 mm
占地面积/Required area	约7.5m
重量(依设备选项可能增加150+kg)/Weight according to options (upto 500 kg more)	1000 kg (Option 150kg)
承重/Load per unit area	500 kg/m
工艺腔室-Process Chamber
长度宽度/LengthWidth	L720*W800 mm
夹具尺寸/Load dimension	650*650 mm
小真空度/Min Vacuum degree	2 mbar
升温时长/Warm up time	为25 min/approx 25 min
温差/Temperature accuracy	纵向/横向温差 ±2℃/profile longitudinal and lateral: ±2℃
加热-Heating
典型焊接温度(常压状态下)/Typical soldering temperature(at normal pressure)	215/240℃
炉腔内壁加热温度/chamber inner surface temp	290℃
传输系统 - Conveyor System
工装夹具尺寸/Workpiece carrier innerally	长x宽：650 x 650 mm
夹具承重/Workpiece carrier area loading	标准：8kg;可选15kg
[敏感词]净空高/max.Clearance	下方down:30 mm/上方up 65 mm
传输高度可调范围/Adjustable conveyor height	950mm ± 30 mm
中央支撑装置-Center Support	调节支架(选项)/Rack (optional)
运行环境-Operating Data
[敏感词]噪声/Maximum noise level	72dBA
室温/Room temperature	从15℃到32℃/between 59℉ and 89℉
湿度/Humidity	以15%到75%/between 15% and75%
外接口-Connections
输入电压/Voltage supply	380V AC 3P或参阅随机电路图/system specific,please see layout plan
冷冻水(仅外接冷端)/Cooling water (external cooling only)	外置工业冰水机、或工厂空调冷却水/system specific,please see layout plan
压缩空气/Compressed air disposable supply	工厂系统管道压力气体/system specific,please see layout plan
电源-Voltage Supply/Consumption
电力系统/Type of power system	5线制(L1,L2,L3,N,PE)5-Wire-System
电压/Voltage supply	3*230/400VAC ±5 % 50Hz (可依要求定制其它电压/other voltages upon request)
总功率/Connected load	50 KW
由于使用效率取决于工艺参数的设置，实际达到的值可能与此处所标示的数值略有不同。 As the operating efficiency do depends on settings of the process parameters, the values reached actually can differ from the values indicated here.
外置冷水-Cooling Water Supply at External Cooling
接口/Connection external thread	1寸外牙(不锈钢)
水压/Operating pressure	min 2 bar –max 5bar
冷却水流量/Cooling water flow	小10–20 ltr/min(受水温影响) at least 10–20 ltr/min (depending on forward flow temperature)
压差/Differential pressure	min.0.5bar
水温/Supply temperature	min.10℃–max.15℃
压缩空气-Compressed Air Pressure Supply
接口/Connection	G 1/2"(12mm铜管CU-Tube)
运行压力/Operating pressure	5–7bar
排气-Exhaust
排气管/Exhaust socket dia-meter	145mm
排气量/Blust quantity	300m³/h
排气温度/Exhaust us temperature	<50℃<>

注：由于技术更新或有数据差异
Remarks: Errors and Subject to technical alterations.
