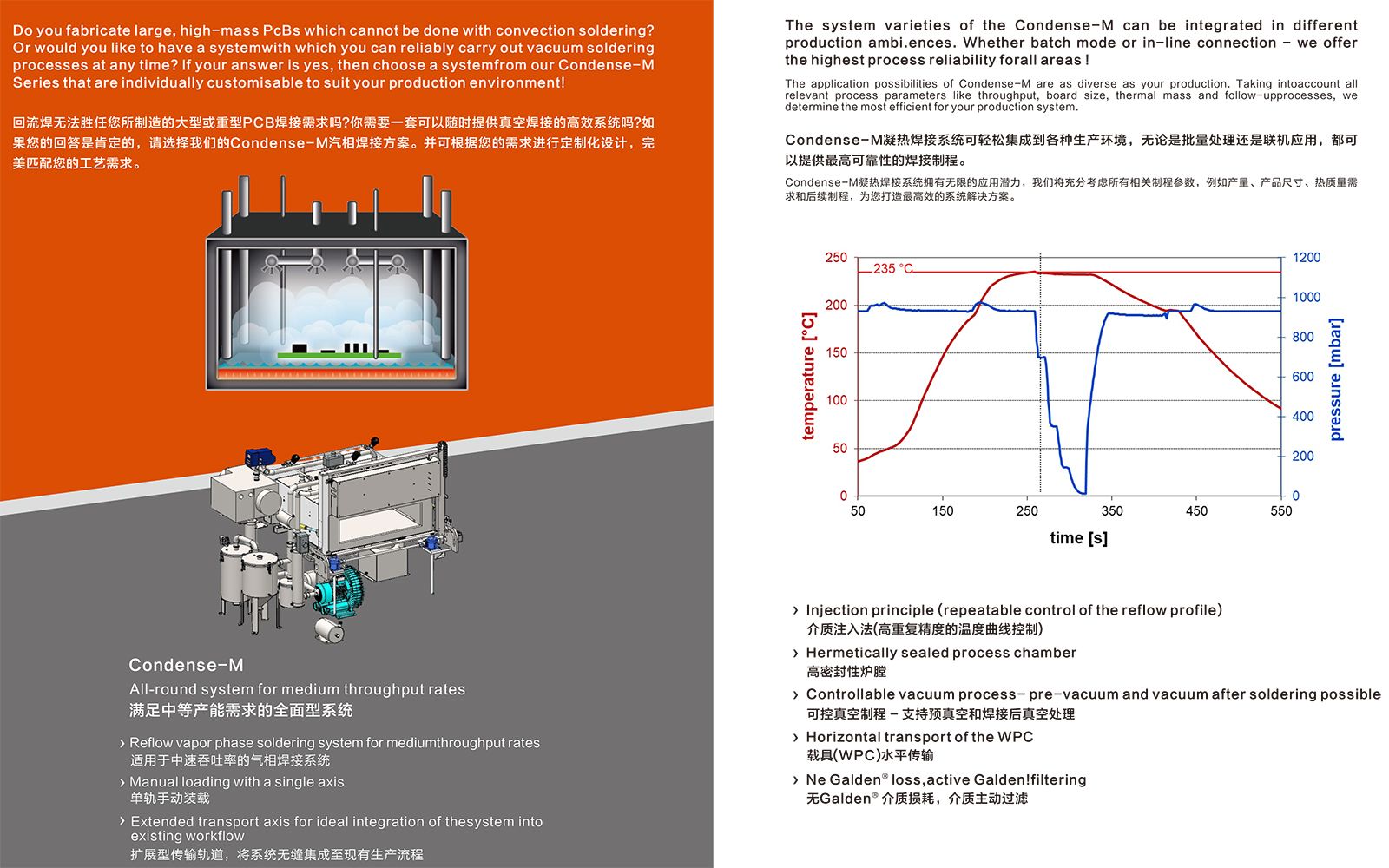

Vapor phase soldering withVacuum Condense-M

Smallest T

Extremely efficient and uniform heat transfer over the complete assembly

Maximal soldering temperature limited from the boiling temperature of the Galden3

Patented injection principle warrants repeatable solder results

Optimal profiling

Control of gradients

联系我们

基本参数-Dimensions and Weights
长度/Length	3240 mm(不含接驳2430mm)
宽度/Width	2100 mm
高度(不含信号灯)/Height without traffic light	1800 mm
高度(含信号灯)/Height with traffic light	2260 mm
占地面积/Required area	约7.5m
重量(依设备选项可能增加150+kg)/Weight according to options (upto 500 kg more)	1000 kg (Option 150kg)
承重/Load per unit area	500 kg/m
工艺腔室-Process Chamber
长度宽度/LengthWidth	L720*W800 mm
夹具尺寸/Load dimension	650*650 mm
小真空度/Min Vacuum degree	2 mbar
升温时长/Warm up time	为25 min/approx 25 min
温差/Temperature accuracy	纵向/横向温差 ±2℃/profile longitudinal and lateral: ±2℃
加热-Heating
典型焊接温度(常压状态下)/Typical soldering temperature(at normal pressure)	215/240℃
炉腔内壁加热温度/chamber inner surface temp	290℃
传输系统 - Conveyor System
工装夹具尺寸/Workpiece carrier innerally	长x宽：650 x 650 mm
夹具承重/Workpiece carrier area loading	标准：8kg;可选15kg
[敏感词]净空高/max.Clearance	下方down:30 mm/上方up 65 mm
传输高度可调范围/Adjustable conveyor height	950mm ± 30 mm
中央支撑装置-Center Support	调节支架(选项)/Rack (optional)
运行环境-Operating Data
[敏感词]噪声/Maximum noise level	72dBA
室温/Room temperature	从15℃到32℃/between 59℉ and 89℉
湿度/Humidity	以15%到75%/between 15% and75%
外接口-Connections
输入电压/Voltage supply	380V AC 3P或参阅随机电路图/system specific,please see layout plan
冷冻水(仅外接冷端)/Cooling water (external cooling only)	外置工业冰水机、或工厂空调冷却水/system specific,please see layout plan
压缩空气/Compressed air disposable supply	工厂系统管道压力气体/system specific,please see layout plan
电源-Voltage Supply/Consumption
电力系统/Type of power system	5线制(L1,L2,L3,N,PE)5-Wire-System
电压/Voltage supply	3*230/400VAC ±5 % 50Hz (可依要求定制其它电压/other voltages upon request)
总功率/Connected load	50 KW
由于使用效率取决于工艺参数的设置，实际达到的值可能与此处所标示的数值略有不同。 As the operating efficiency do depends on settings of the process parameters, the values reached actually can differ from the values indicated here.
外置冷水-Cooling Water Supply at External Cooling
接口/Connection external thread	1寸外牙(不锈钢)
水压/Operating pressure	min 2 bar –max 5bar
冷却水流量/Cooling water flow	小10–20 ltr/min(受水温影响) at least 10–20 ltr/min (depending on forward flow temperature)
压差/Differential pressure	min.0.5bar
水温/Supply temperature	min.10℃–max.15℃
压缩空气-Compressed Air Pressure Supply
接口/Connection	G 1/2"(12mm铜管CU-Tube)
运行压力/Operating pressure	5–7bar
排气-Exhaust
排气管/Exhaust socket dia-meter	145mm
排气量/Blust quantity	300m³/h
排气温度/Exhaust us temperature	<50℃<>

注：由于技术更新或有数据差异
Remarks: Errors and Subject to technical alterations.
